With over 30 million users globally Office 365 from Microsoft is one of the most popular productivity software subscription suites on the enterprise market. In this guide, we will give you the full step-by-step instructions on arranging protection with hardware tokens for Office 365 without a need to obtain Azure AD Premium license.
Support for classic OATH tokens for Azure MFA in the cloud has been recently announced
by Microsoft for users with an Azure AD Premium P1 or P2 license. This page
describes the enrollment procedure for classic tokens with Azure Cloud MFA.
This guide is for tenants without Azure AD Premium licenses
refer to this page if you have Azure AD Premium
How to use Token2 programmable tokens with Azure MFA
Token2 programmable tokens are a "drop-in" replacement of mobile applications such as Google Authenticator or Token2 Mobile OTP. If you are using Office 365 with Azure MFA protection enabled, you can use our programmable tokens as an alternative to mobile application method by following the instructions below. Please note that this requires no administrative priveledges and any user can benefit from this method. The only prerequisite is an NFC-enabled device running one of our apps.
Step1. Install one of the burner apps and make sure your token is accessible via NFC.
I.e. you can test NFC access by "get OTP" button of the app: push the button on the device and hold it close to the NFC antenna of your device (on the phones it is usually below the camera on the back). Then on the Burner App, touch the "get OTP" or "get Info" button. The OTP shown on the app should match the one displayed on the token. Be aware of NFC stability issues with some devices described here
Note! You need an NFC-enabled device for the enrollment process only. Subsequent logins will utilize only the token itself. This allows using the solution for users not possessing mobile phones (or refusing to use personal phones for corporate access). The enrollment with the Token2 Burner App can be done by IT Helpdesk, and the users will only use the token for authentication.
Step 2. Enable or reconfigure Authenticator app on your Office 365 account

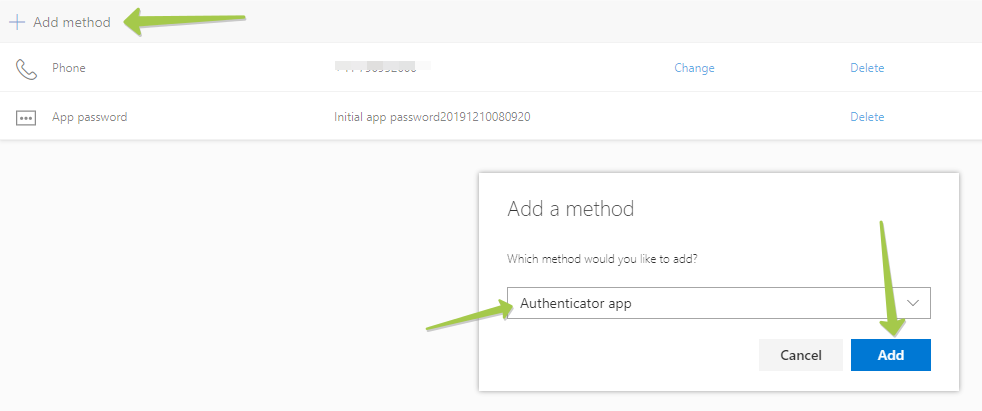

Navigate to MFA setup page and from the Security info page, select "Add Method", and "Authenticator App" from the list.

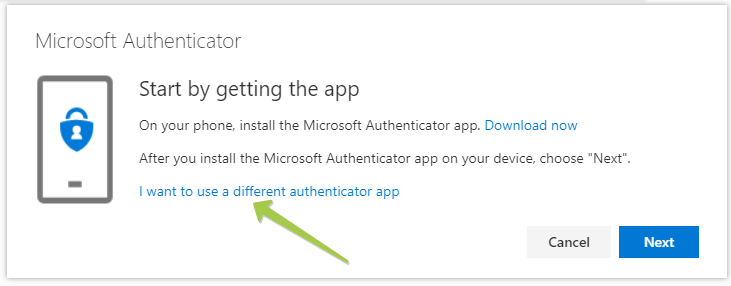

Click "Add" to proceed to the next step. By default, it prompts to use Microsoft Authenticator, which uses a different OTP protocol, which cannot be transferred over to our hardware tokens. Please click on "I want to use a different authenticator app" to generate a TOTP QR code instead.

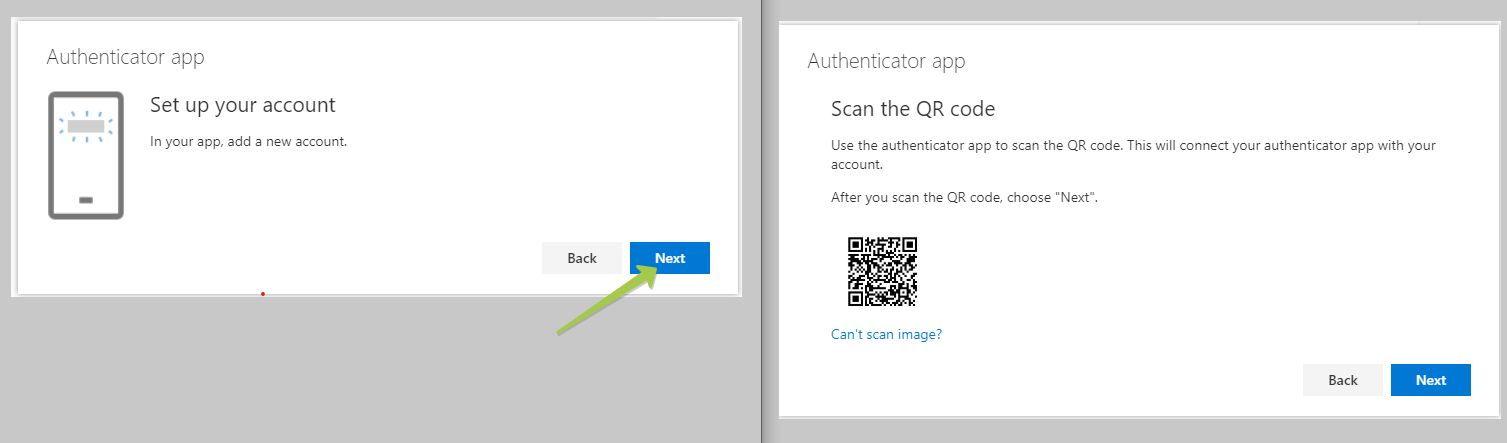

On the next window, click "Next" to get the QR code displayed on the screen
Keep this window open and proceed to Step 3 on your mobile device.
Step 3. Burn the token with Token2 Burner App
Launch Token2 Burner App on your device. Click on Scan QR button and scan the QR code shown on the enrollment page as described in the previous step or enter the seed manually or copy&paste from the screen (click on "can't scan image?"). Then, push the button on the token and hold it close to the NFC antenna of your device. Click on "connect", then "burn seed" button. The app should show "burn seed process succeeded" message if the process is successfully completed.
Step 4. Verify the token and complete the enrollment

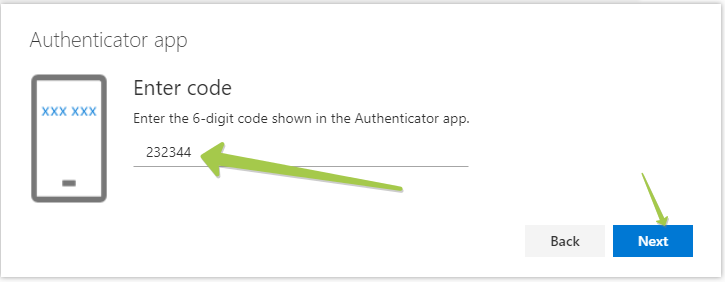

After the burn process is completed, click Next and proceed with OTP verification. To verify the OTP, click on Next button, and on the next window, enter the OTP code displayed on your token device.
Complete the process by clicking on "Next" button.
Frequently asked questions
- Q. Do I need tenant admin rights in order to use hardware tokens with cloud-hosted Azure MFA?
- A. Not for cloud Azure MFA. Token2 programmable tokens fully emulate mobile apps, so it can be enabled (and disabled) by end users themselves.
- Q. Can the miniOTP-1 token be reused for another user (i.e. if the previous owner left the company)?
- A. Yes. the miniOTP-1 tokens are reprogrammable for an unlimited number of times. So the steps described above can be repeated for any user using any miniOTP-1 device (even previously owned).
- Q. Why does the burner app crash when I scan the QR code?
- A. The QR code shown by default on this page is in Microsoft's proprietary format (phonefactor protocol) and is not compatible with the QR reader component of our app. Please make sure you switch to "Configure app without notifications" mode before scanning the QR code.
- Q. Can I use both hardware and software token simultaneously?
- A. Yes, as long as "Configure app without notifications" option is maintained. When you see the QR code after clicking "Configure app without notifications" you can scan it using a mobile app (such as Google Authenticator or Token2 Mobile OTP) before continuing with burning the seed on the programmable token.
- Q. Can other types of hardware tokens (for example c200) be used with Azure MFA?
- A. Onprem hosted MFA server (Azure MFA Server) supports any TOTP tokens, however, cloud Azure MFA is currently in public preview. Refer to this blog post for more details. Worth mentioning that the same tokens can be easily reused even after this feature becomes available.
- Q. Is there support for time drift and time skew of the hardware tokens in Office 365 with Azure MFA?
- A. We have tested the accepted skew with Azure MFA using our TOTP Toolset and discovered that the allowed skew around 900 seconds (15 x 30-second steps in each direction) which means that no adjustment is needed. If you still need the time to be accurate, you can use our programmable hardware tokens with time sync feature
- Q. Why a hardware token more secure than other methods such as mobile apps, texts or voice calls?
- A. Physical hardware tokens are a much more secure protection a user can currently have. A separate, isolated device generates OTP codes fully offline without any need for Internet or any other network access. There is no potential way for attacker access nor infect the device or intercept the generated one-time passwords. In case a hardware token is lost or stolen the user will notice it right away. This is not the case with a mobile app running on an infected mobile device or a text message intercepted at the GSM network level; with these methods, the victim may not even be aware of the attack at all.
